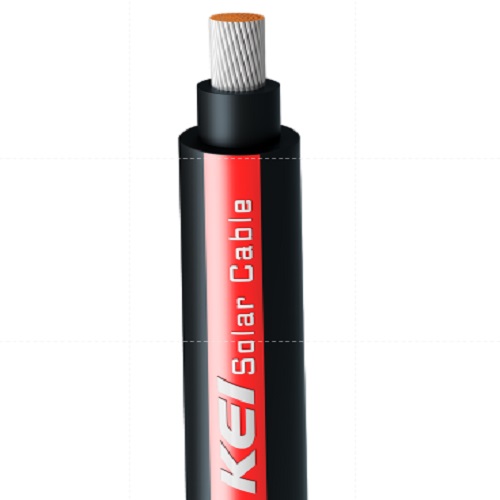

KEI Solar Cable

About KEI Solar Cable

KEI PV Solar cables are designed for connecting photovoltaic power supply systems.They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of a 1.5kV. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. cables are designed to withstand the demanding environmental conditions that arise in any fixed, mobile, roof or architecturally integrated photovoltaic installation.

Applications:
These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions. They are designed and tested to operate at a normal maximum conductor temperature of 90C and for 20,000 hours up to 120C. Therefore, the expected period use is 30 years under normal usage conditions.

Design:

• Conductor Flexible Electrolytic Tinned fine copper strands, acc. To IEC 60228, class 5
• Insulation Crosslinked Halogen Free & Flame Retardant Insulation , Colour : White , Red Or Black
• Outer Sheath Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black Or Black with Red Stri

Thermal Characteristics:

• Short Circuit Temperature: 200C (at conductor max. 5sec)
• Thermal Endurance Test : According to EN 60216-2 (temperature index +120 Deg C)

Chemical Characteristics:

• Mineral Oil Resistance: according to EN 60811-2-1
• Ozone Resistance: according to EN 50396 part 8.1.3 Method B
• Very good resistance to oil and chemicals
• Acid & Alkaline Resistance: According to EN 60811-2-1(Oxal acid and sodium hydroxide)
• Weathering-UV Resistance

Mechanical Characteristics:

• Dynamic Penetration: According to requirement of Cables for PV systems
• Tensile Strength: 6.5 N/mm2 for insulation and 8 N/mm2 for sheathing according to EN60811
• Elongation of Insulation and sheathing: 125% according to EN60811
• Shrinkage : 2% at 120C according to EN 60811-1-3

No. of cores	Conductor cross sectional Area.	Applicable standard	Cable Type
1	1.5 to 16 sq.mm.	TUV 2 Pfg 1169	ATC/ XLPO / XLPO
1	1.5 to 16 sq.mm.	EN 50618	ATC/ XLPO / XLPO
1	1.5 to 16 sq.mm.	GEN 7098-1	ATC/ XLPE / PVC
