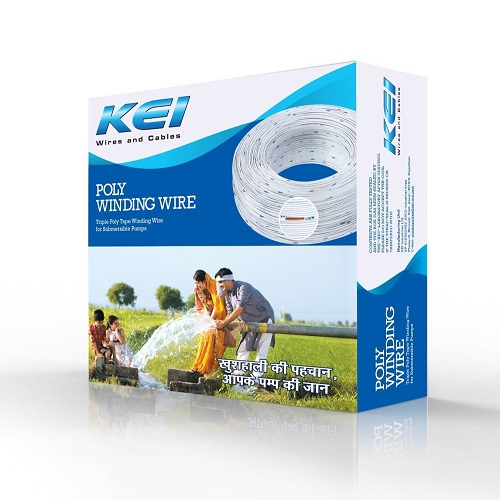

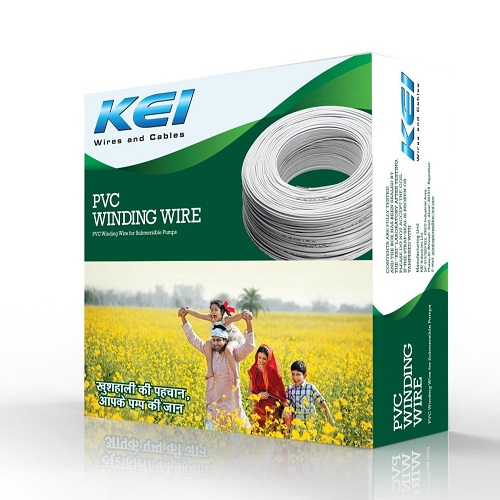

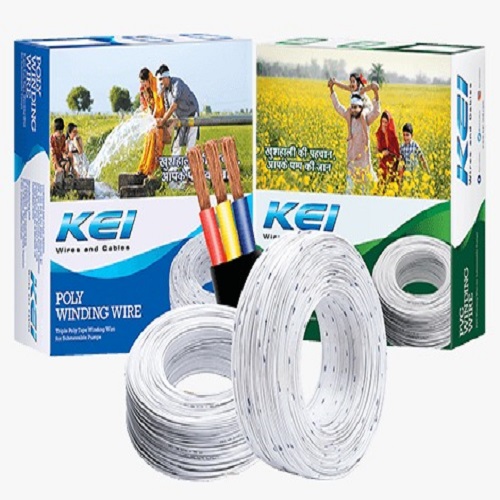

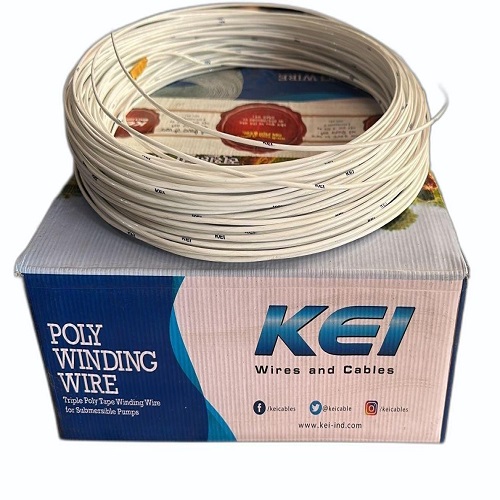

KEI PVC Insulated Submersible Winding Wire

KEI PVC Insulated Submersible Winding Wire Specification

Cable Length
Custom, as per Requirement

Connector Type
Open Ended/No Connector

No Of Core
Single Core

Temperature
Up to 70C

Conductor Type
Multistrand

Product Type
Winding Wire

Material
Copper

Function
Submersible Motor Winding

Usage
Domestic and Industrial Submersible Pumps

Voltage Surge
Withstands Up to 1600 Volts

Frequency (MHz)
50 Hz

Rated Voltage
Up to 1100 V

Rated Current
As per IS Specifications

Cable Capacity
Standard for Submersible Applications

Insulation Material
Special Grade PVC

Conductor Material
Copper

Length
100 Meter (m)

Size
0.50 Sq.mm to 16 Sq.mm

Color
Blue/White/Custom

Diameter
0.5 Millimeter (mm)

Application
Submersible Pump Motors

Flame Retardant
Yes

Insulation Thickness
0.7 mm to 1.1 mm (Depending on Size)

Standard
IS 8783 / BS 6004

Heat Resistance
High Resistance to Thermal and Mechanical Stress

Moisture Resistance
Superior Moisture and Abrasion Protection

Flexibility
Excellent Flexibility for Winding

Packaging
Coil Form/Spool Packaging

KEI PVC Insulated Submersible Winding Wire Trade Information

Minimum Order Quantity
100 Kilograms

Delivery Time
7 Days

KEI PVC Insulated Submersible Winding Wire About

KEIs especially designed winding wires, outfitted with a high-grade insulation impermeable to liquids, offer highest quality for submersible motors and guarantee trouble-free operation and long motor life. These Wires serve maximum range of submersible pump manufactures and thousands of rewinders across the country due to KEIs proven reliability in quality products.

Application:
These Wires are used for Winding Submersible Pumps Motors of all sizes. Flat Cables are mainly used in pump connection. They are used for both Domestic & Industrial applications.

Features:

Uniform Resistance
Resistance annealed copper & controlled OD
Inline monitoring of cable diameter
High Voltage Spark Testing
Excellent Electrical & mechanical properties

Optimal for Submersible Pump Motors

Engineered specifically for submersible pump motors, the KEI PVC Insulated Submersible Winding Wire delivers unmatched reliability under water and in challenging environments. Its moisture resistance and abrasion protection make it ideal for both domestic and industrial applications. The wire maintains performance under high thermal and mechanical stress, ensuring longevity and efficiency in demanding situations.

Superior Flexibility and Protection

This submersible winding wire stands out due to its excellent flexibility, allowing for easy and secure winding during motor assembly. The special grade PVC insulation safeguards against voltage surges (up to 1600V) and provides effective flame retardancy. Packaged conveniently in coil or spool forms, these wires can be supplied in custom lengths and colors to suit specific project requirements.

FAQ's of KEI PVC Insulated Submersible Winding Wire:

Q: How does the KEI PVC Insulated Submersible Winding Wire perform in moist and submerged environments?

A: KEI's winding wire offers exceptional moisture and abrasion resistance, making it ideal for continuous operation in submerged or damp conditions as commonly found in submersible pumps.

Q: What are the main applications of this winding wire?

A: This wire is specially designed for submersible pump motors used in domestic and industrial water pumping systems, ensuring safe and efficient motor winding.

Q: When should I choose this wire over standard winding wire?

A: Choose the KEI submersible wire when high moisture resistance, thermal strength, and flexibility are essential, especially for wiring motors that operate under water or in harsh conditions.

Q: What benefits does the special grade PVC insulation provide?

A: The special grade PVC insulation delivers high heat, flame, and abrasion resistance, along with the flexibility needed for compact and secure motor winding, ensuring long-lasting performance.

Q: How is the wire packaged and in what lengths is it available?

A: KEI submersible winding wire comes in coil or spool packaging and can be supplied in custom lengths according to your requirements, making it easy to handle for various installation needs.

Q: Where is this wire manufactured and can it be customized?

A: Manufactured by KEI as a supplier, these wires can be customized by size (0.5 Sq.mm to 16 Sq.mm), length, and color to fit diverse project demands.
